Quick Guide

Here is a short guide on how to treat and maintain the Compacttilt CTR3.

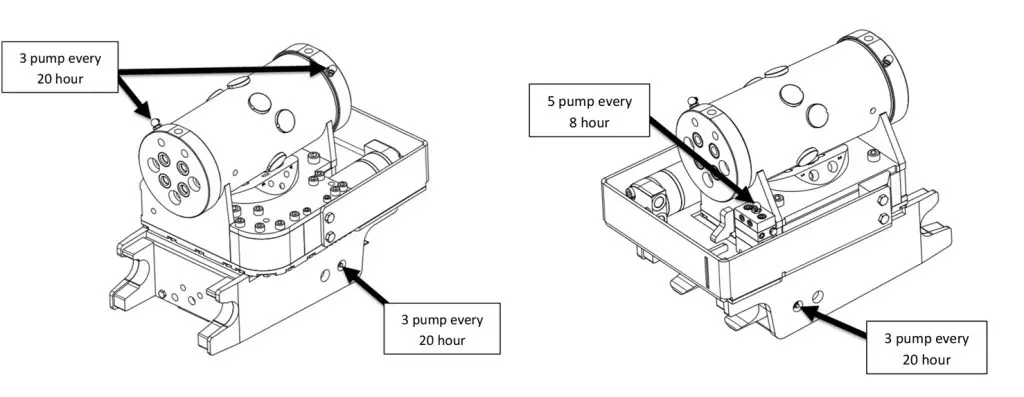

Lubrication overview

For lubrication of the Compacttilt, it is recommended to use: Castrol Molub-Alloy 370-2
Lithium-based high-pressure grease with molybdenum disulphide (MoS2) EP additives in NLGI 2.
Spec.: -DIN 51502 KF2K-25
-ISO 6743-9 ISO-LXCCIB2
Greases containing graphite and copper must not be used.
Always ensure that the lubrication nipples are free of dirt before lubrication is carried out.

Maintenance

During daily inspection and maintenance, check:
➢ Lubrication of lubrication points according to the overview
➢ Threads are intact
➢ Eyes and bolts are not broken
➢ No loose screw joints
➢ No cracks or fractures
➢ It is ensured that the tool holder is clean, mounted and clamped correctly
➢ Compacttilt Tiltrotator is correctly mounted between the carrier and the implement
➢ There is no hydraulic leak
➢ There is no grease leakage on hoses or in couplings

Connection of equipment

STEP 1

Before connecting the quick-change gear, make sure that the quick-release locking
pawls are retracted, which can be seen by pushing out the indicator pin.

(figure 5)

STEP 2

The equipment to be connected must be positioned so that the quick coupler fork eyes can catch.

The quick coupler fork eyes engage the coupling shaft of the equipment

(figure 6)

STEP 3

When the quick-release fork eyes have caught, the implement swings into place thus it
it abuts the open fork eyes of the quick coupler. The quick coupler is activated and the
locking pawls are slid out (Figure 7).

The activation of the quick coupler can be seen by lowering the indicator pin.

The machine is now ready for use with the connected implement.

Use of quick change with hydraulic system

Control of installation

1. Check that the Compacttilt Rotator is working properly.
2. Check that no hoses or anything else is exposed to pinch, cut or stretch damage.
3. Check leaks.
4. Check that bolts are properly tightened [See carrier’s instruction].
5. Check that there is no contact with the digging arm and the Compacttilt Rotator at full swing.
6. Ensure that the bracket fits the carrier [see machine sign].
7. Ensure that the pin-lock is fully engaged and the indicator pin is correctly mounted.

NOTICE: Assembly and installation may only be carried out by workshops approved by the manufacturer. Do not make
any changes to the assembly without the manufacturer’s permission. Workshops approved by the manufacturer are
dealers with their own workshop, unless otherwise stated in the delivery of the Compacttilt Rotator.
