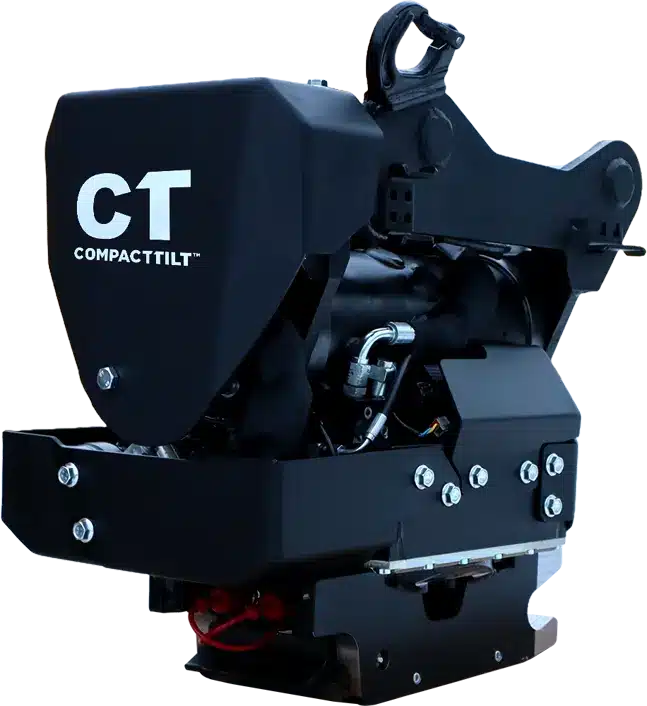

CTR6
The market's most compact tiltrotator for 3.5 – 6 tonnes
- Cylinder-free design
- Only 360 mm wide
- Lightweight – only 175 kg
- 2x50° tilt
- Infinite rotation
- Prepared for machine control
The Compacttilt Rotator™ CTR6 is developed to give mini excavators in the 3.5T to 6T class extended functionality through improved operating economy and a better working environment for the machine operator.
- Machine control – The CTR6, like all Compacttilt Tiltrotator products, is prepared for machine control.
- HS2 control system – The CTR6 can be specified with the large HS2 control system, where the new L8 SVAB joystick and touchscreen are installed in the cab, with the option of track steering, boom swing control and dozer blade control.
- Uniquely low weight – from 175 kg including mounting and valve block.
- Minimal width – from 360 mm without gripper.
- Gripper option – The gripper can be added and is available with S40, S45 and Hydrema mounting.

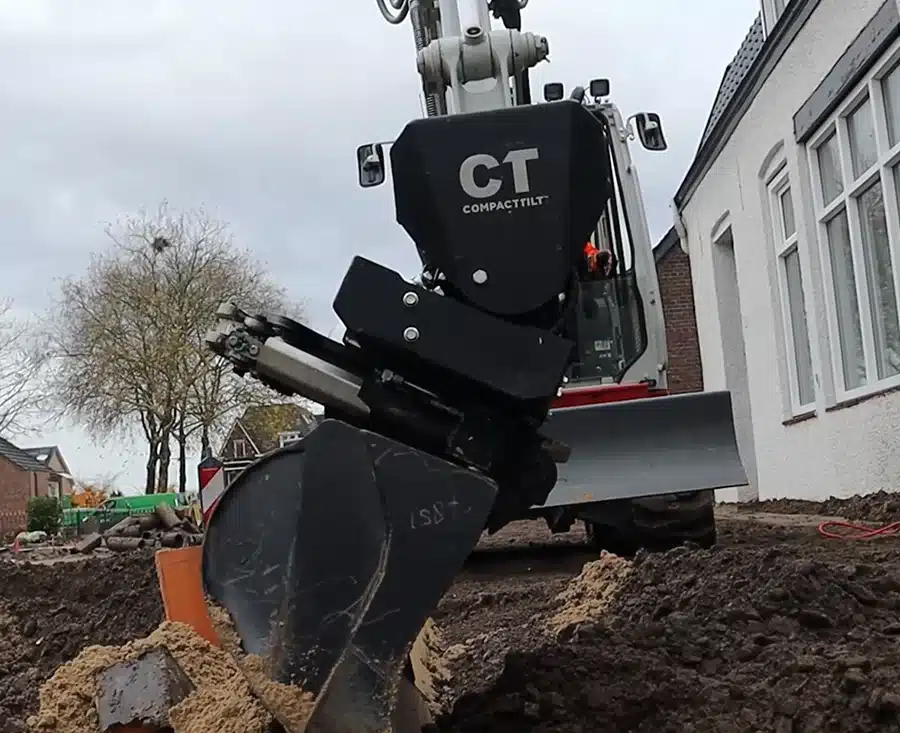

The CTR6 features a narrow design to ensure the machine is suited for work in complex conditions, in areas that are normally hard to reach and/or in narrow trenches. This means the CTR6 is built without cylinders and can work in 40 cm trenches – both with and without a gripper.
The CTR6 is also designed with a focus on being a lightweight product, so the excavator retains its full lifting capacity. The CTR6 has a product weight starting at 175 kg, depending on the options.
With the CTR6, the machine gains full rotation in the attachment with 360-degree rotation and a 2 x 50-degree tilt function. This means the machine optimises its tasks within grading, digging, levelling and earthmoving.
The CTR6 is prepared for central lubrication, where all lubrication points are routed to a single grease point.
Add CT-OIL™
The CTR6 can be specified with Compacttilt's solution for automatic oil changeover, CT-Oil. With CT-Oil, the machine can change attachments – for example a gripper – using the machine's joystick without manually switching the oil coupling. This means attachments can be changed without the operator having to leave the cab. CT-Oil stands out by being able to connect to the machine's existing controls and by working with all types of control systems, including HS4.
CT-LOCK™ included
The CTR6 is developed with CT-Lock, a double locking on the bucket coupler. It is a mechanical additional safety feature in accordance with the applicable Machinery Directive.
Looking for a simpler solution without rotation? See the CT6 tilt for excavators from 3–6 tonnes.
Why choose the CTR6?
More digging power
The low weight gives your machine more lifting power and stability.
Tight spaces
The cylinder-free design makes it possible to dig and work even in the tightest spaces.
Better visibility
No hydraulic cylinders blocking your view from the cab.
Low maintenance costs
Fewer hoses and cylinders mean minimal maintenance.
Traditional tiltrotator vs CTR6
Cylinders on the sides limit the reach and make digging in narrow areas difficult.
The cylinder-free design provides maximum freedom of movement and full reach in narrow areas.
Complete your CTR6
Expand your tiltrotator with original accessories from Compacttilt.
CT-Oil
Hydraulic quick coupler for safe and efficient changing of attachments.
- Fast, leak-free coupling
- No hose tangle
- More uptime
Gripper
Powerful gripper for moving stone, timber, pipes, rubble and much more.
- Strong grip
- Durable construction
- Perfect sorting
HS2
Intelligent control system with joystick and touchscreen.
- User-friendly
- Plug & Play
- Ready for machine control
Compatibility & configurations
The CTR6 fits the most common excavator brands and is available with various mounting plates.
Compatible with most brands
...and many more
Available mounting plates
The CTR6 is available with various mounting plates and quick couplers – so you always find the perfect solution for your machine.
S40
Most compact option. 400 mm total width with gripper.
S45
For heavier applications. 490 mm width with gripper. 1/2" extra hydraulic outlet.
Hydrema
Specifically for Hydrema quick coupler systems.
Not sure which mounting plate fits your machine? Your dealer will be happy to help →
What our customers say
My experience has been very positive. The smooth movements, the rotation, the gripper – they are a real pleasure to work with. For us, Compacttilt is an ideal solution for carrying out all our work.
I bought a Hitachi 38u with a Compacttilt CTR6. The CTR6 makes it easier to remove soil around cables and pipes, so we need the hand shovel less often while still getting the digging work done underneath.
Technical specifications
Frequently asked questions
Ready to upgrade your excavator?
Contact us today and get a no-obligation quote for the CTR6.
Request a quote for your machine
Do you want to know which Compacttilt solution fits your excavator best? Fill in the form and receive a non-binding quote. You can choose which of our Danish dealers you would like to receive the quotation from.
