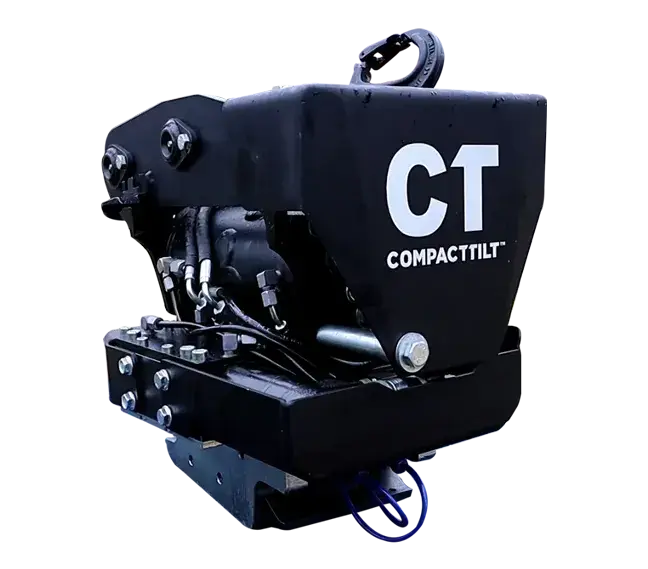

CTR2
Compact tiltrotator for 1 – 2 tonne excavators
- Cylinder-free design – no pistons on the sides of the dipper arm
- Only 253 mm wide – the slimmest in the Compacttilt range
- Lightweight – only 65 kg incl. mounting and valve block
- 2×50° tilt
- Infinite rotation
- Prepared for machine control with rotation sensor
- Prepared for central lubrication
- CT-Lock as integrated standard, approved according to EU standard 474-5
- 1 extra hydraulic outlet for connecting hydraulic attachments as standard
The Compacttilt Rotator™ CTR2 is designed to give the smallest excavators — in the class up to 2 tonnes — significantly more flexibility without compromising lifting capacity. At only 253 mm wide and with an own weight from 65 kg, the CTR2 is the most compact tiltrotator in the Compacttilt range and one of the slimmest on the market for this machine class.
- Cylinder-free construction – no hydraulic cylinders on the sides of the dipper arm, giving free passage in narrow trenches and close to edges where a traditional tiltrotator cannot reach.
- Machine control with rotation sensor – the CTR2 is prepared for machine control. With the rotation sensor as an option, the tiltrotator’s rotation is continuously registered and sent to the machine control system — so you always know exactly where the attachment is pointing, even when rotated. This enables precise grading on 2 slopes and around the machine with a 2D system.
- HS2 control system – the CTR2 can be supplied with HS2, featuring L8 joysticks and a touchscreen mounted in the cab, with options for track steering, side shift and dozer blade control.
- Central lubrication – the CTR2 can be delivered prepared for central lubrication, automating greasing of all lubrication points.
- Low own weight – from 65 kg incl. mounting and valve block, so even a small machine retains its lifting capacity.
- Quick coupler – supplied with S30 coupler (S30-150, S30-180 or MH30), integrated into the machine’s hydraulic quick coupler system.
The CTR2 is built with a narrow profile, making the machine ideal for digging in tight trenches, in areas difficult to access, and close to cables, pipes and foundations where space is minimal. This is precisely why the CTR2 is built without cylinders on the sides.
With the CTR2, the machine gains full 360-degree rotation in the attachment and a tilt function of 2×50 degrees — 100 degrees in total. This means even the smallest excavators can carry out precise grading, slope work and earthmoving in complex environments.
Add CT-OIL™
The CTR2 can be supplied with CT-Oil, enabling the operator to switch hydraulic attachments directly from the machine’s existing joystick. It eliminates manual connection and disconnection of oil couplings, as the switch happens through the machine’s existing quick coupler function. CT-Oil works with all types of control systems, including HS4.
CT-LOCK™ is included
The CTR2 comes with CT-Lock, a double-locking mechanism on the bucket coupler. It is a mechanical two-factor safety system in compliance with the applicable Machinery Directive and EU standard 474-5.
Looking for a simpler solution without rotation? See the CT2 tilt for excavators in the same weight class.
Why choose the CTR2?
Maximum digging power
At only 65 kg, even the smallest machine loses minimal lifting capacity and stability.
Tight spaces
253 mm width and cylinder-free design make the CTR2 ideal for the narrowest trenches and confined areas.
Better visibility
No hydraulic cylinders blocking the view from the cab to the attachment and the work area.
Low maintenance
Cylinder-free design and optional central lubrication minimise downtime and maintenance costs.
Traditional tiltrotator vs CTR2
Cylinders on the sides limit the reach and make it difficult to dig in narrow areas — especially on the smallest machines where every millimetre of clearance counts.
The cylinder-free design provides maximum freedom of movement and full reach — even on the smallest excavators in the class up to 2 tonnes.
Complete your CTR2
Expand your tiltrotator with original accessories from Compacttilt.
CT-Oil
Easy and safe switching of hydraulic attachments directly from the machine’s existing joystick.
- Optimise the operator’s working environment
- Efficient switching of attachments, e.g. sorting grab or vacuum lifter
- Cost-effective option, as it works on the machine’s existing controls
HS2
Intelligent proportional control system with L8 joysticks and touchscreen.
- More precise operation
- All machine functions combined in the L8 joysticks
- Set up user profiles via the touchscreen
- Track steering, dozer blade control and side shift as options
Rotation sensor
Precise positioning for 2D and 3D machine control — grade on 2 slopes and around the machine.
- Continuously registers the tiltrotator’s rotation
- Compatible with the leading machine control brands
- Can be retrofitted to an existing CTR2
- Enables grading with a 2D system
Compatibility & configurations
The CTR2 fits the most common excavator brands and is supplied with an S30 quick coupler.
Compatible with most brands
...and many more
Available quick couplers
The CTR2 is supplied with an S30 quick coupler in three variants – so the solution fits your specific machine.
S30-150
S30 – 150 mm pin spacing.
S30-180
S30 – 180 mm pin spacing.
MH30
MH30 – for specific machines.
Not sure what fits your machine? Your dealer will be happy to help →
What our customers say
I purchased a Case 19D with CTR2 and central lubrication. I chose Compacttilt because I could get it with a rotation sensor, which means that with a 2D system I can grade on 2 slopes and around the machine. I have now operated it for 250 hours and I must say it is a pleasure to work with.
Owner, Sandholdt ApS — Case 19D with CTR2
Technical specifications
Frequently asked questions
The CTR2 – like all Compacttilt products – is manufactured to the machine’s mounting data for a fixed-mount integration. The configuration that matches the machine’s hydraulic setup is then selected.
The touchscreen also allows individual user profiles to be set up and settings to be customised, including speeds and functions for the tiltrotator.
The CTR2 can be fully integrated with the machine’s existing joystick and works without HS2. The system is an option – not a requirement – for those who want maximum functionality and the best possible user experience.
See the complete user manual for the full maintenance schedule, or find the key maintenance points quickly in our Quick Guide.
