CT3

Weight Class: 2 - 3 Tons

Compacttilt™ CT3 is a tilt system designed for excavators in the 2 to 3 ton weight class. With a tilt angle of 2×50º, a unique low installation height, no wider than the excavator’s own attachment – the Compacttilt™ CT3 has been developed to solve versatile digging tasks. The low built-in height ensures that a sharp edge can be dug very close to the excavator.

Full 100º tilt angle (2×50º) for versatile work.
Standard equipped with hydraulic quick change with pinlock locking system.
Unique low weight of 36 kg incl. quick coupler and machine attachment, so that the machine retains its natural strength.
No cylinders and nothing that measures apart from the machine’s own attachment.
Measures only 198 mm in width.
Inclusive CT-LOCK™.

The Compacttilt™ CT3 attachment is not wider than the machine’s attachment – this makes it easy to get to where space conditions are challenging, while making optimal use of spacious buckets that can be filled to the max – and swing the excavator arm out over the excavator’s belts – without the machine tipping over.

CT3 Specifications

Specifications for Compacttilt machines

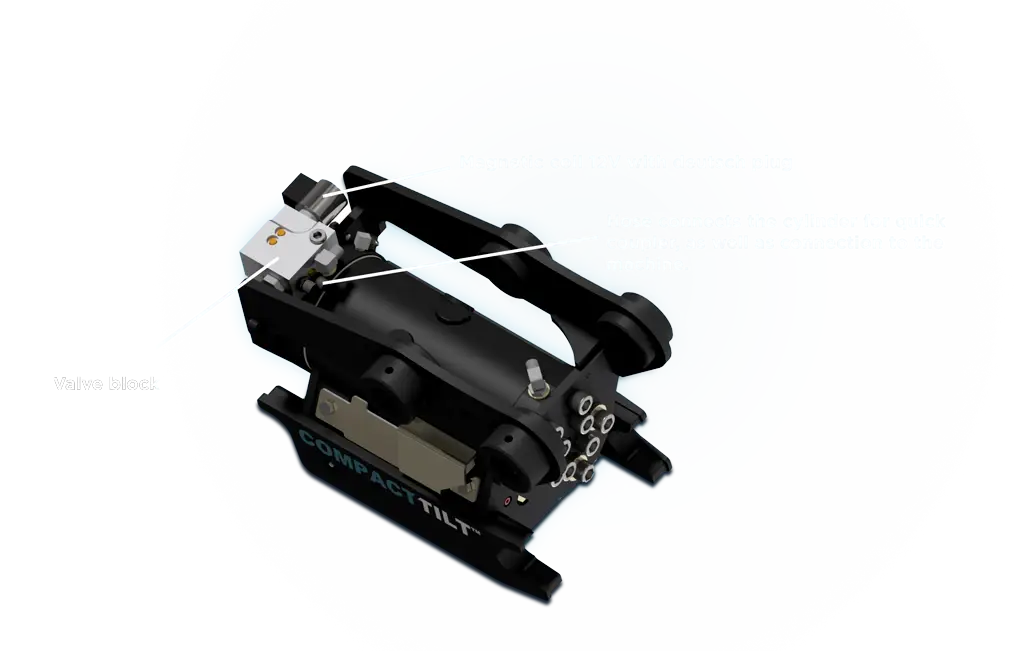

VALVE HS2 SYSTEM FOR TILT

With this solution, we prepare our tilt to be built on the excavator, and it thus becomes “plug & play”.
– Efficient installation when the machine was born without locking hydraulics
– easy preparation, where it is avoided that the machine has to be built up to cope with the tilting function.
– Ensuring a uniform installation
