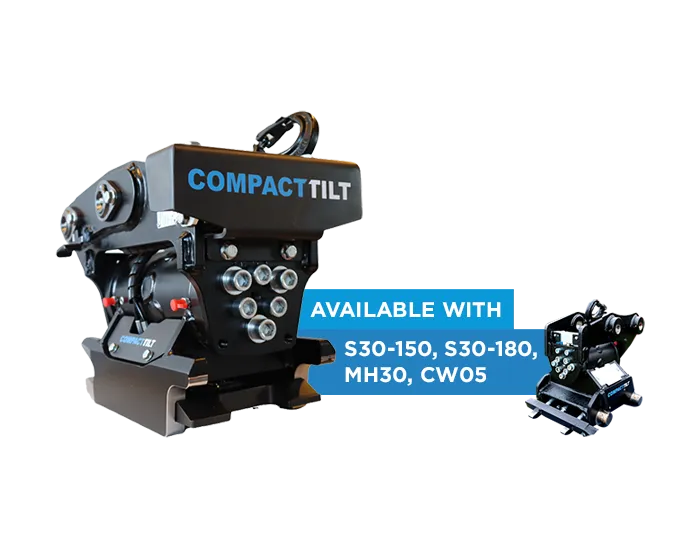

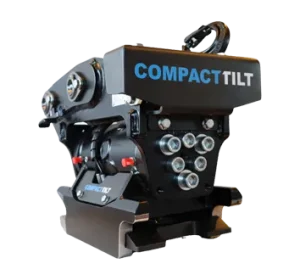

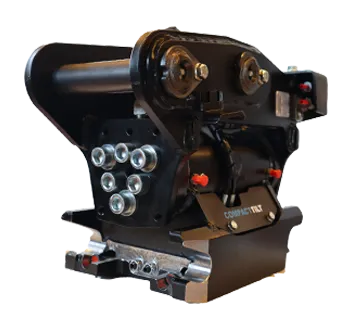

CT2

Weight Class: 0 - 2 Tons

Compacttilt™ CT2 is designed for excavators in the weight class 0 to 2 tons. The Compacttilt™ CT2 is unique in that it is both narrow and low in weight, which helps make it optimal for digging in narrow trenches.

Full 100º tilt angle (2×50) for versatile work.
Standard equipped with hydraulic quick change with pin-lock locking system.
Unique low weight of 30 kg incl. quick coupler and machine attachment, so that the machine retains its natural strength.
Developed for working in narrow grooves.
Measures only 148 mm in width, and can use 20cm buckets.
CT-LOCK™ included.

With the Compacttilt™ CT2, full utilization of the machine’s digging properties is achieved – even when space conditions are small. The attachment is produced for the specific machine and is available with S-change or 180º change.

CT2 Specifications

Specifications for Compacttilt machines

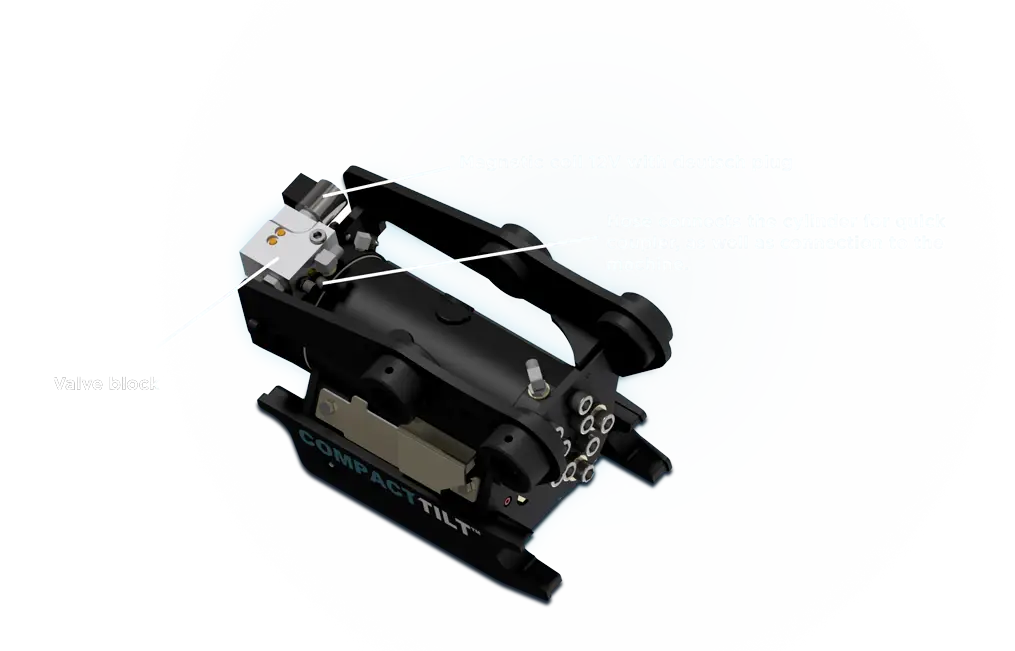

VALVE HS2 SYSTEM FOR TILT

With this solution, we prepare our tilt to be built on the excavator, and it thus becomes “plug & play”.
– Efficient installation when the machine was born without locking hydraulics
– easy preparation, where it is avoided that the machine has to be built up to cope with the tilting function.
– Ensuring a uniform installation
